Application place



Because of its convenient carrying, flexible use and built-in large capacity battery, this type of mobile phone signal shield is especially suitable for large conference venues, infantry forces, military security forces, special police forces, bomb teams, anti-terrorism units, drug control units, riot prevention teams, detonation queues, checkpoints, hostage negotiation and border control.



technical parameter



Shielding range: radius 100-200 meters (-75 dBm, outdoor open environment, depending on the distance of the surrounding base stations)

Transmitting Power: Whole set (> 80W), 15-20W per channel

Shielding signal types: 4G, 3G (TD/WCDMA/CDMA2000), GSM (Mobile/Unicom 2G), CDMA (Telecom), DCS (Mobile/Unicom 1800M)

Additional signal types: wireless remote control, walkie-talkie, satellite telephone, GPS, Wi-Fi, Bluetooth, etc.

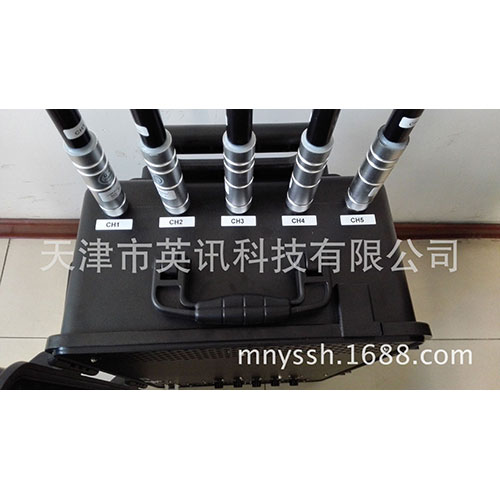

Output Channel: Five Channels Output, Each Channel can be Switched Individually

Features

High power coverage, shielding all 2G, 3G, 4G signals. Customizable frequency band, two combinations can achieve 20M ~ 3000MHz full band shielding;


The tow box design and flexible application are especially suitable for emergency, transition, temporary control and other use requirements;
Built-in rechargeable battery, can be used for 70 to 90 minutes after fully charged;

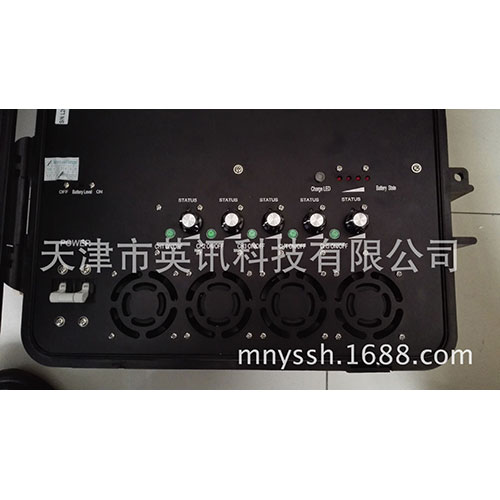

In addition to the manual switch, it also has a remote control switch function, which can switch the machine at a long distance; the box body adopts the standard of military instruments.

Pelican chassis, anti-drop and anti-pressure, durable;
Multiple power supply modes: AC220V power supply, can be powered by built-in battery, and can be powered by vehicle power supply (DC24V);
The built-in high-efficiency cooling fan and heat sink combine to ensure stable overall performance and long service life;
ISO9001:2008 quality management system certification products;

Detailed technical parameters

Technical parameters: Shielding range: radius 100-200 meters (-75dBm. Outdoor open environment, depending on the distance of surrounding base stations)



Transmitting Power: Whole set (> 80W), 15 ~ 20W Shielded Signal Types per Channel: 4G, 3G



(TD/WCDMA, CDMA2000), GSM (Mobile/Unicom 2G), CDMA (Telecom), DCS (Mobile/Unicom 2G)



Mobile/Unicom 1800W) can change signal types: wireless remote control, walkie-talkie, satellite telephone, GPS,



WI-FI, Bluetooth and other output channels: five channels of output, each channel can be controlled by a single switch;




Functional features: high power coverage, shielding all 2G, 3G, 4G signals, also can customize the frequency band, two combinations can be achieved.



20M-3000MHz full-band shielding; tow-box design, flexible application. It is especially suitable for emergencies.



Transition, temporary control and other use requirements; built-in rechargeable battery, full of electricity can be used after 70-90



Minutes; In addition to manual switch, it also has remote control switch function, which can switch machine over a long distance; box selection



Pariken chassis of military instrument standard, anti-fall and anti-compression, strong and durable; various power supply modes;



It can be powered by AC220V, built-in batteries and on-board power supply (DC).



24V); Built-in high-efficiency radiation fan and radiator combined to ensure that the overall performance of stable, so that



Long service life; ISO 9001:2008 Quality Management System Certification Production



Main components

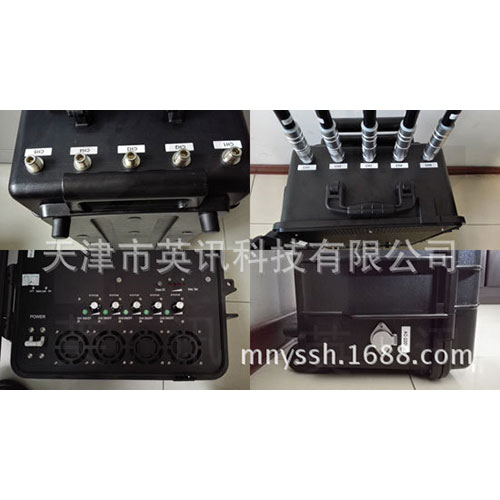

Product details
