Shielder 100W Shielder High Power Signal Shielder, High Power Shielder Manufacturer Direct Sales
Application place
This extra-power mobile phone signal shielding machine is especially suitable for large-scale venues, infantry units, military security forces, special police teams, bomb teams, anti-terrorism units, because of its powerful power, flexible shielding, and flexible customization according to user needs. Anti-drug units, riot squads, detonation teams, checkpoints, hostage negotiations and border controls.
Technical Parameters
n Shielding range: radius 300-500 meters (-75dBm, outdoor open environment, depending on the surrounding base station)
n Transmitting power: single channel ≥100W, whole machine power 100-600W (select the number of customized channels according to user needs)
n Shielded signal types: GSM (Mobile/Unicom 2G), CDMA (Telecom), DCS (Mobile/Unicom 1800M), TD (Mobile 3G), CDMA2000 (Telecom 3G), WCDMA (China Unicom 3G), 4G (Mobile, China Unicom, telecommunications)
n can increase the type of signal: wireless remote control, walkie-talkie, satellite phone, GPS, Wi-Fi, Bluetooth, etc.

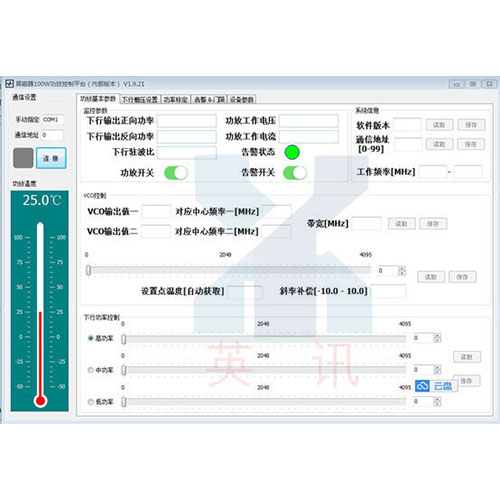

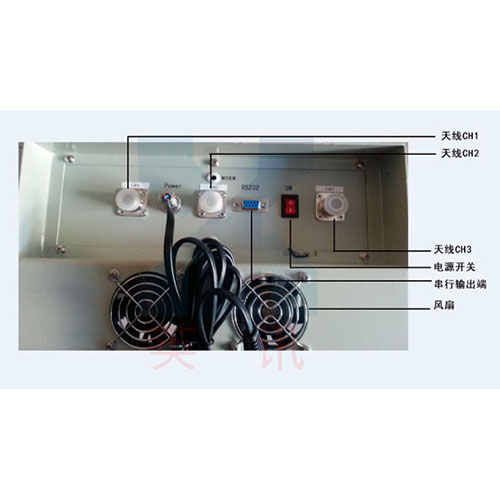

n Output channel: 6 channels output, each channel can display the output power through software, which is straightforward.
Features
n High power coverage, shielding all 2G, 3G, 4G signals. Customizable frequency band, multiple combinations can be shielded from 20M to 3000MHz in full frequency range;
n Easy to install and flexible, especially suitable for emergency, transition, temporary control and other use requirements;
n The antenna is highly integrated, and the 6-channel antennas are integrated together for easy carrying and installation;
■ Directional antenna configuration, the gain is stronger, the antenna gain is 9dbi;
n Multiple power supply modes: AC220V power supply, can be powered by vehicle power supply (DC24V);
n Built-in high-efficiency cooling fan and heat sink combine to ensure stable overall performance and long service life;
n ISO9001:2008 quality management system certification products;
product details
Three-way combination icon
Detailed technical parameters
|
Frequency band parameter
|
aisle
|
working frequency
|
Average output power
|
|
4G |
2550-2660MHz |
100w |
|
|
WCDMA |
2110～2145MHz |
100w |
|
|
TD |
2010～2025MHz |
100w |
|
|
GSM |
925～960MHz |
100w |
|
|
DCS |
1805～1920MHz |
100w |
|
|
CDMA |
870～880MHz |
100w |
|
|

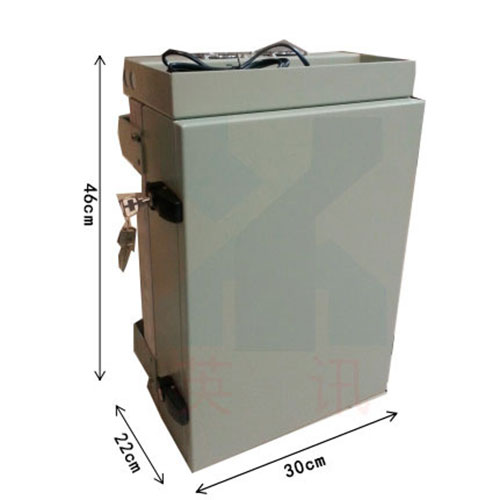

Host size
|
300*220*460 |
||
|
Antenna size
|
1000*285*125 |
||
|
Total Weight
|
26.5Kg |
||
|
Ambient temperature
|
-40℃～55℃ |
||
|
|
≤85% |
||
|
|
Single polarization base station antenna, gain 8-9dBi, standing wave ratio < 1.5 |
||
|
|
7500W |
||
|
power input |
AC：100V～240V DC：24V |
||
OEM custom service
It can be modified and spread for Wi-Fi, GPS, Bluetooth, etc. as needed.
More than 5 sets can provide silk screen OEM services.
A neutral machine is available.
After sales service
While guaranteeing the quality of this product, you will enjoy the free service guarantee of our company:
All products, such as non-human damage, are provided with a free replacement machine within one month, a free warranty within three years (one power supply warranty for some shields), lifetime maintenance, and maintenance costs only after the warranty period).
The main control software of the mobile phone shielding system and mobile phone signal detection system provides a lifetime free upgrade service. Technical consultation, training and program design services are provided free of charge for many years.
