_Product Profile

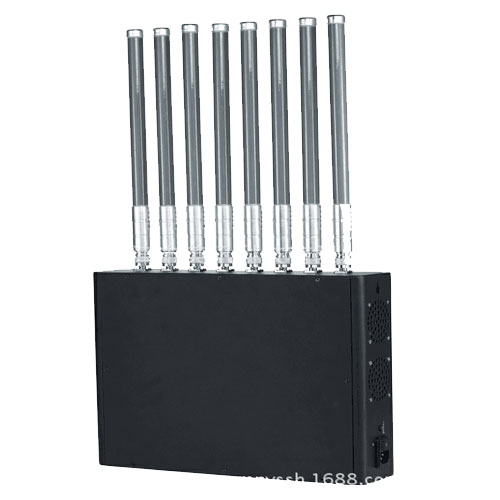

YX-505F8 medium-power mobile phone signal shielder is a high-tech product developed meticulously according to the actual situation of foreign mobile communications. It can cut off GSM/CDMA/DCS/PHS/TD-SCDMA/WCDMA/CDMA2000/WIFI/LTE (4G) within a radius of 1-50 meters (about 10-1000 square meters, which can adjust the shielding range according to the site required). Signals, so that the mobile phone can not be played and received, and can not send or receive short messages, but will not interfere with the work of other electronic equipment, thus ensuring the safety of the required places, the mobile phone can be returned to normal use without any damage to the human body.
※产品特点※
１．有效屏蔽距离1-50米

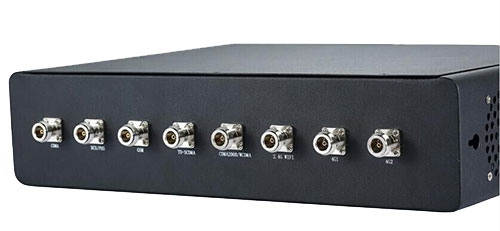

２.GSM/CDMA/DCS/PHS/WCDMA/TD-SCDMA/CDMA2000/WIFI/4G屏蔽八路频段
３．可连续12小时工作
4．505F8发射功率40W
_Applicable Place_
1. College Entrance Examination, Adult College Entrance Examination, Self-taught Examination and Various Colleges and Universities
2. Party and government organs, enterprises, large and medium-sized conference rooms, concert halls, cinemas and theatres
3. Detention centres, reform-through-labour teams, large, medium and small prisons and troops
4. Flammable and explosive places such as gas stations, oil depots, oil fields and gas stations
_After-sales service_
Maintenance of mainframe within one year
_Performance index_
|
Serial number |
technical standard |
parameter |
505F8 |
|
|
1 |
CDMATransmitting frequency |
869-894MHz |
● |
|
|
2 |
GSMTransmitting frequency |
925-960MHz |
● |
|
|
3 |
DCS/PHSTransmitting frequency |
1805-1920MHz |
● |
|
|
4 |
TD-SCDMATransmitting frequency |
2005-2030MHz |
● |
|
|
5 |
WCDMA/CDMA2000 Transmitting frequency |
2110-2150MHz |
● |
|
|
6 |
WIFI Transmitting frequency |
2400-2500 MHz |
● |
|
|
7 |
LTE1(4G1)Transmitting frequency |
2300-2390MHz |
● |
|
|
8 |
LTE2(4G2)Transmitting frequency |
2550-2660MHz |
● |
|
|
9 |
Shielding Mobile Phone Types |
WIFI. All mobile phones and 4G |
||
|
10 |
size |
380（L)*300(W)*90(H) |
||
|
11 |
weight |
6.5公斤 (Bare machine） |
||
|
12 |
Shielding range |
1-50 米（About 1000 square meters, the shielding range can be adjusted according to the required place.） |
||
|
13 |
Transmitting power per channel |
5W+/-200mA |
||
|
14 |

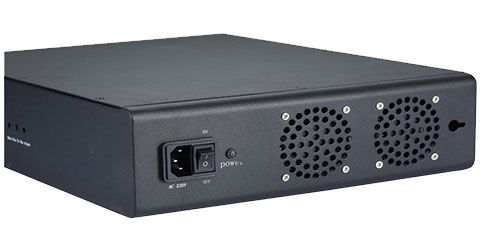

Power Supply |
Power inputAC160V-240V |
||
|
15 |
Use of environmental conditions |
temperature |
-10 to –55℃ |
|
|
relative humidity |
≤90%(RH) |
|||
|
atmospheric pressure |
86-106kPa |
|||
|
position |
indoor |
|||
Installation instructions
This product can be directly fixed to the wall or ceiling by screw. The surface temperature of this product can reach 50 C. So please stay away from low heat resistant objects. Installation height: 1.0: Do not put the antenna of mobile signal shield in the direction of mobile base station, otherwise it will affect the use effect.
Model Coding Rules
YX - 505F 8
Brand Series Reserved Power Profile Frequency Band
Series: 5==adjustable shield
Power: 5==5W per antenna
Band: 8==8 Band
