产品使用说明书

Product Instruction

产品型号：YX-007-F12

Product Model: YX-007-F12

目录

Contents

认识设备………………………………………………………………………………………..1

Introduction of Equipment........................................................................1

1.产品清单 ……………………………………………………………………………………1

1. List of Product......................................................................................1

2.设备部件介绍 ………………………………………………………………………………2

2. Introduction of Equipment Units...........................................................2

使用说明 …………………………………………………………………………………….4

Instructions..................................................................................................4

1.设备使用步骤 ……………………………………………………………………………4

1. The use of equipment          ................................................................4

2.供电介绍……………………………………………………………………………………5

2. Introduction of Charging.....................................................................5

3.应用场合……………………………………………………………………………………5

3. Applications.........................................................................................5

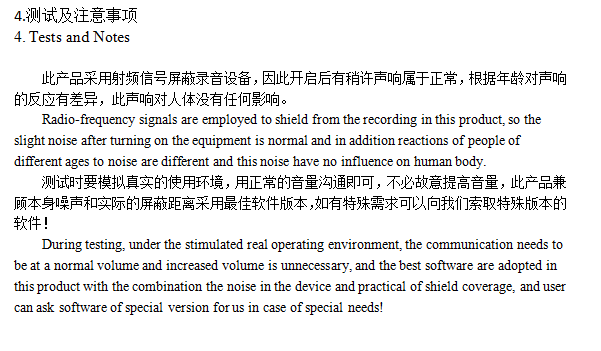

4.测试及注意事项……………………………………………………………………………5

4. Tests and Notes....................................................................................5

技术参数 ……………………………………………………………………………………...6

Technical Parameters..................................................................................6

安全注意事项………………………………………………………………………………....8

Safety Cautions.........................................................................................8

温馨提示 ………………………………………………………………………………………8

Warm Warning...........................................................................................8

认识设备

Introduction of Equipment

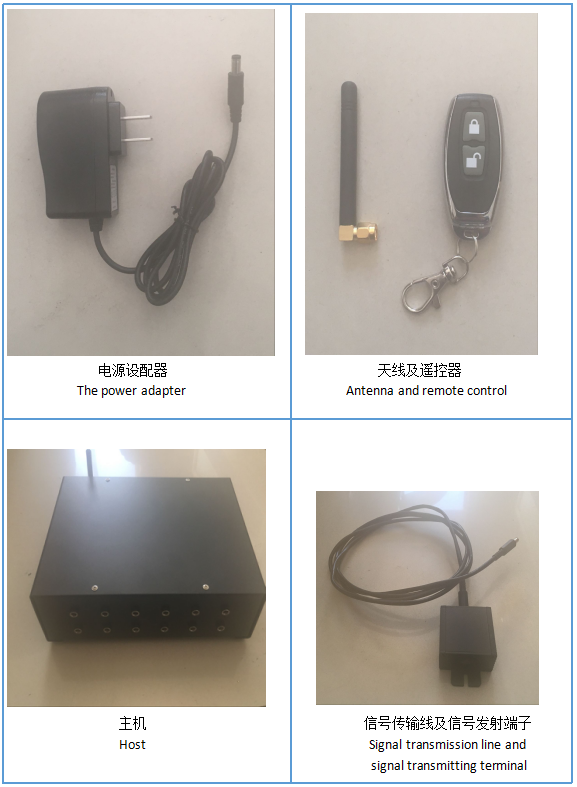

1.产品清单

1.List of Product

2.设备部件介绍

2.Introduction of Equipment Units

使用说明

Instructions

拿到本产品后先检查包装内：主机一台；电源适配器一个；信号发射模块12个；信号传输线12条；遥控器一个；天线一个。

After receiving this product, user needs to check one host equipment、one power adapter、12 signal transmitting modules 、Signal transmission line 12 、A remote controller and one Antenna in the packing case.

1.设备的使用步骤

1. The use of equipment

第一步：

The first step:

先将设备的十二个信号发射端子及天线分别安装到主机上

First, the twelve signal terminals modules and antennas of the equipment are installed on the host, respectively.

第二步：

Second steps:

将每一个信号发射端子固定到相应座位的桌子下面

Fix each signal terminals module under the table of the corresponding seat

第三步：

Third steps:

将电源设配器与主机相连，为设备进行供电

The power adapter is connected with the host, for power supply equipment

第四步：

Fourth steps:

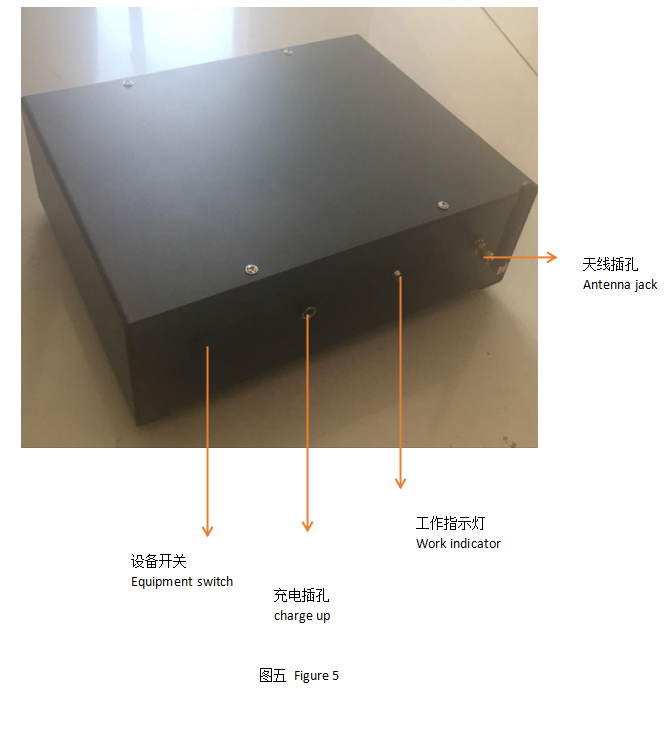

打开设备：打开图五的电源开关，工作指示灯点亮，设备处于待机状态，按下遥控器的开锁按钮，设备开始工作；

关闭设备：关闭图五的电源开关，工作指示灯熄灭，设备关闭。

不关闭图五的电源开关，直接关闭遥控器的关锁按钮，设备处于待机状态，并未完全关闭。

Switch on the equipment: Turn on the power switch in Figure 5, the work indicator lights up, the equipment is in the standby state, press the unlock button of the remote control and the indicator will be on with the equipment in work;

Switch off the equipment: Turn the power switch to “ON” of the remote control in Figure 5, and indicator of remote control will flash with the equipment in  close.

Don't turn the power switch to “ON” of the remote control in Figure 5, close the lock button of the remote control

directly. The device is in standby state and it is not completely closed.

2.供电介绍

2. Introduction of Charging

本产品采用电源适配器方式供电。

Power adapter is employed as the ways of power supply of this product.

适配器供电：直接将图一中电源适配器的充电插头插入图二的充电插孔，再将电源适配器插入充电插座即可；

Power adapter supply: plug directly the charging plug of power adapter in Figure 1in jack in Figure2 and plug the power adapter in the outlet.

3.应用场合

3. Applications

本款YX-007-F12录音屏蔽器是由天津市英讯科技有限公司自主研发的，高度集成化的高科技安全防护产品。当不法分子采用录音设备（如手机、录音笔、录音机等）对您进行录音时，录音屏蔽器会产生随机性的噪音信号，该信号能够对语音信号产生压制性干扰，使录音设备拾取的只有噪声信息，而无法分辨出语音信息，从而确保语音信息的安全。主要应用于：机密会议室。

This YX-007-F12 recording shield independently researched and developed by Tianjin Yingxun Technology Ltd, is a high-tech safety protective apparatus with high level of integration. In case of being illegally recorded via recording devices (such as mobile phones, recording pens and recorders and so on), the recording shield will generate random noise signals which can oppressively interfere with speech signals so that only noise information is picked up by recording devices and the speech information cannot be distinguished to make sure of safety of speech information. Generally applied: Confidential conference room.

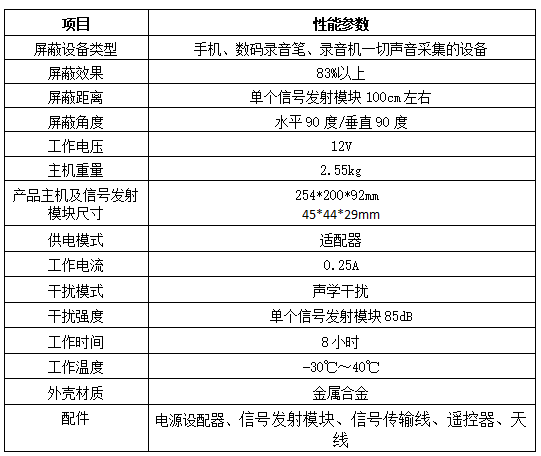

技术参数（YX-007-F12）

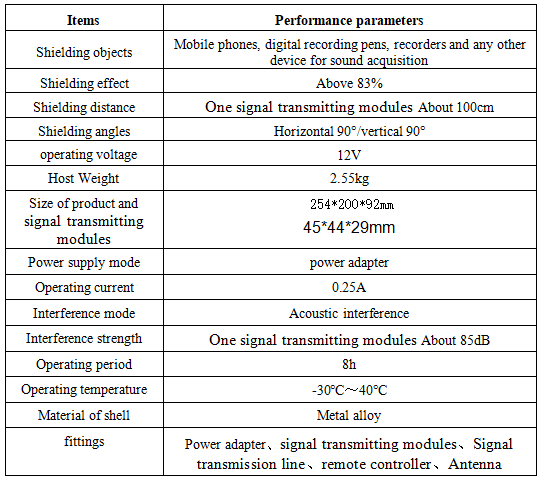

Technical Parameters (YX-007-F12)

安全注意事项

Safety Cautions

使用前请仔细阅读以下安全注意事项：

Carefully read the following safety cautions before use:

发生以下情况请立即关闭设备，从电源插座中拔出电源设配器。

In case of the following circumstances, turn off equipment immediately and plug power adapter out of the outlet.

1.停电或者电压不稳定

1. Power failure or voltage instability

2.设备内部发出异常声音后者气味

2. Abnormal noise or smell from the inside of equipment

3.电源设配器损坏

3. Damages to power adapter

4.设备由于跌落、敲击、撞击而损坏

4. Damages to equipment due to falling off, being knocked on and being impacted

5.任何液体或其它异物调入机壳内

5. Falling of any other fluid or foreign bodies into the shell

温馨提示

Warm Warning

1.切勿使用交流220V、50Hz以外的电源。

1. Don’t use any other power supply other than 220V AC, 50 Hz.

2.切勿改装或者损坏设备及电源设配器。

2. Don’t refit or damage equipment and power adapter.

3.切勿用其它电源设配器对设备进行充电。

3. Don’t employ other power adapter to charge the equipment.

4.切勿以任何方式自行拆装设备，所有修理都应委托专业的技术人员。

4. Don’t assemble and disassemble equipment in any way by yourself, and all of repair should be consigned to professional technicians.
